CIM Color Shield™ Topcoat transforms high-performance waterproofing systems with its versatile, long-lasting finish. From elevating UV resistance and chemical durability to crafting vibrant, slip-resistant surfaces, mastering the application unlocks the coating’s full potential. This guide leads you step by step through the application process, sharing expert tips and proven techniques to help you achieve flawless, reliable results.

Why Use CIM Color Shield™ Topcoat?

CIM Color Shield is more than a finishing layer—it adds performance and longevity to your waterproofing system:

• UV Protection: Maintains membrane integrity under sunlight exposure
• Chemical Resistance: Adds durability in harsh environments
• Slip Resistance: Supports the creation of non-skid walkable surfaces
• Aesthetic Enhancement: Provides color consistency and gloss retention:

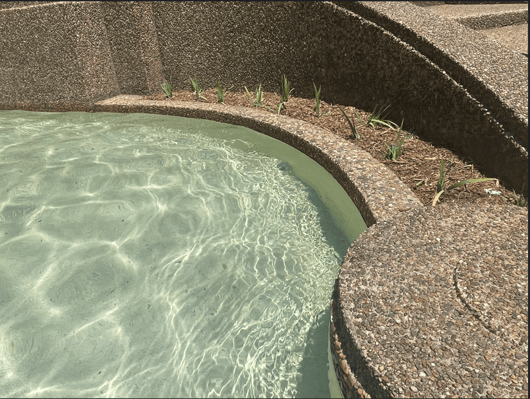

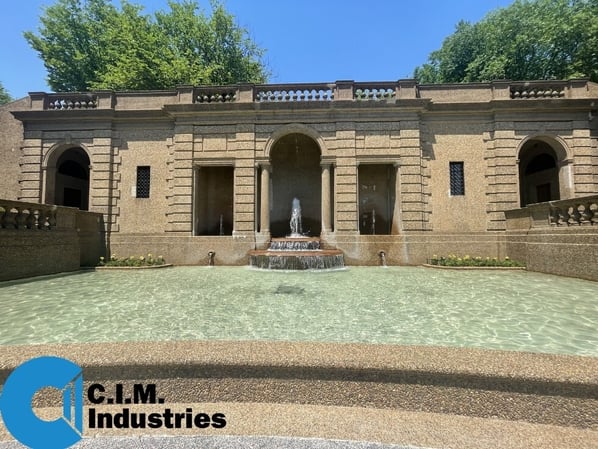

CIM Color Shield™ Topcoat can help create a durable, uniform finish for exposed waterproofing applications, including decorative water features, walkable surfaces, and other demanding environments.

Because every project environment is different, always evaluate:

• Temperature conditions
• Traffic and abrasion exposure
• UV exposure
• Chemical exposure

Best practice: Perform a test patch to confirm system compatibility and performance.

Safety and Pre-Application Preparation

Before beginning the application:

• Review Safety Data Sheets (SDS) for all CIM products and cleaning solvents
• Ensure all materials, tools, and surfaces are clean and completely dry
• Keep containers tightly sealed until use
• Avoid application if:
  • Rain is expected
  • Surfaces are damp
  • Coating may become wet within 6 hours

Use caution in confined spaces—follow appropriate safety guidance.

Ideal Application Conditions

To ensure proper adhesion and curing:

• Minimum surface temperature: 50°F (10°C)
• Surface must be at least 5°F (3°C) above dew point
• Material temperature: CIM Color Shield must also be ≥ 50°F (10°C)

Environmental control is critical for optimal results.

Surface Preparation: Coating Over CIM Membrane

Preparation depends on the CIM membrane’s age and condition

Within 4–24 Hours

• Apply CIM Color Shield directly
• No additional preparation required

After 24 Hours

• Wipe the surface with MEK or acetone before coating

UV Exposure Over 30 Days

• Clean thoroughly to remove oxidation and debris
• Finish with a solvent wipe before coating

Aggregate Broadcast Systems

• Ensure aggregate is clean and dry before application

Mixing: Precision Is Critical

Proper mixing is essential for consistent performance:

• Pour the premix into a clean, dry pail
• Use a power mixer (e.g., ½" drill with Jiffy mixer)
• Begin mixing without introducing air
• Slowly add the Activator
• Mix thoroughly for 3 full minutes

Best practices:

• Scrape container sides carefully to ensure all material is fully blended
• Maintain a consistent mixing technique

Batch consistency tip:

• Mix the last gallon or two from the previous batch into the new batch
• “Box” material between batches to prevent hue or shade variations across the finished surface

Caution:

• • Pinhole blisters
  • Reduced pot life

Do not:

• Do not mix by hand
• Do not thin the material
• Do not use partial kits or estimate proportions

Application Process

CIM Color Shield can be applied using:

• Brush
• Roller
• Squeegee

Application requirement:

• Apply to a minimum wet film thickness of 14 mils

Uniform thickness is critical for durability and appearance.

Working Time (Pot Life)

• 45–60 minutes, depending on temperature and application method

Plan your work carefully since working time is limited after mixing.

Recoating Guidelines

If additional coats are required:

• Within 2–24 hours:
  • Recoat directly with no surface preparation
• After 24 hours:
  • Mechanically abrade the surface
  • Remove all dust and debris before recoating

Curing and Return to Service

• Typical cure time: 24–48 hours under normal conditions

CIM Color Shield is highly sensitive to heat and moisture:

• Higher temperatures and/or high humidity will accelerate curing
• Lower temperatures and/or low humidity will extend curing times

Application caution:

• Manage batch sizes and coating thickness carefully, as both significantly affect cure behavior under varying environmental conditions.

Once properly cured, the coating can be placed into service. For specialized conditions, consult the CIM technical guidance.

Final Thoughts

Applying CIM Color Shield™ Topcoat is a critical final step that enhances the performance and appearance of waterproofing systems. Success depends on:

• Proper environmental conditions
• Thorough surface preparation
• Accurate mixing and batching
• Controlled application practices

By following these best practices, you can achieve a durable, uniform, and high-performance finish that withstands demanding conditions.

Contact the CIM Industries representative for specific recommendations or if you have any questions related to the Color Shield™ Topcoat application.

FAQ

What is CIM Color Shield™ Topcoat?

CIM Color Shield™ Topcoat is a durable finishing layer used with high-performance waterproofing systems. It helps improve UV resistance, chemical durability, slip resistance, and overall appearance.

Where can CIM Color Shield™ Topcoat be used?

CIM Color Shield™ Topcoat can be used for exposed waterproofing applications, including decorative water features, walkable surfaces, and other demanding environments where a durable, uniform finish is needed.

What should be checked before applying CIM Color Shield™ Topcoat?

Before application, evaluate temperature conditions, traffic and abrasion exposure, UV exposure, and chemical exposure. A test patch should also be performed to confirm system compatibility and performance.

When should CIM Color Shield™ Topcoat not be applied?

Do not apply CIM Color Shield™ Topcoat if rain is expected, surfaces are damp, or the coating may become wet within 6 hours.

What are the ideal application conditions?

The minimum surface temperature is 50°F, or 10°C. The surface must be at least 5°F, or 3°C, above the dew point, and the material temperature must also be at least 50°F, or 10°C.

How should CIM Color Shield™ Topcoat be mixed?

Pour the premix into a clean, dry pail, slowly add the Activator, and mix with a power mixer for 3 full minutes without introducing air. Do not mix by hand, thin the material, use partial kits, or estimate proportions.

How is CIM Color Shield™ Topcoat applied?

CIM Color Shield™ Topcoat can be applied with a brush, roller, or squeegee. It should be applied to a minimum wet film thickness of 14 mils for durability and appearance.

What is the pot life of CIM Color Shield™ Topcoat?

The working time, or pot life, is typically 45–60 minutes, depending on temperature and application method.

How long does CIM Color Shield™ Topcoat take to cure?

CIM Color Shield™ Topcoat typically cures in 24–48 hours under normal conditions. Higher temperatures and/or high humidity accelerate curing, while lower temperatures and/or low humidity extend cure times.
