How to Choose the Right Waterproofing Membrane
Choosing the right waterproofing membrane is crucial to ensuring your commercial or industrial project stands strong against water intrusion for decades. Whether protecting parking decks, water/wastewater tanks, tunnels, or plazas, understanding membrane types, applications, and specification criteria enables successful waterproofing.
This guide compares liquid-applied and sheet membranes, explains CIM’s product lineup for various substrates and environments, and shares installation and QA best practices to avoid costly errors.
Liquid-Applied vs. Sheet Membranes: What You Need to Know
Feature | Liquid-Applied Membrane | Sheet Membrane |
Seamless Coverage | Monolithic layer, no laps or seams |
Overlaps and heat welds create seams |
Complex Shapes | Easily conforms to penetrations, corners, curves |
Difficult for irregular geometries |
Cure Time | Fast curing (minutes to hours) |
Longer cure unless heat welding |
Repair & Maintenance | Simple spot repair possible |
Repairs often & re-welding |
Climate Adaptability | Cold-applied options available |
Temperature dependent adhesion |
Best Use Cases | Irregular tanks, plaza decks, tunnels |
Large flat roofs or slabs with minimal penetrations |
Why CIM Specializes in Liquid-Applied Membranes
For over 50 years, CIM has been a pioneer in engineered industrial coatings, developing high-performance waterproofing systems that meet stringent VOC regulations and deliver proven results in the most demanding environments.
At the core of CIM’s success is our advanced liquid-applied membrane technology, which forms seamless, fully bonded, and highly elastic barriers. These membranes excel in complex, high-risk applications, such as industrial tanks, tunnels, plaza decks, and confined spaces, where chemical resistance, flexibility, and long-term durability are non-negotiable.
What sets CIM apart is more than just durability. Our membranes offer exceptional crack-bridging capability, a critical feature for concrete structures where movement and settling are expected. In addition, CIM systems feature extremely low permeability, delivering superior protection against water intrusion compared to typical liquid-applied options.
Our product line is carefully engineered for fast cure times, environmental safety (including zero-VOC solutions), and unmatched performance, a reflection of CIM’s legacy of innovation and commitment to quality.

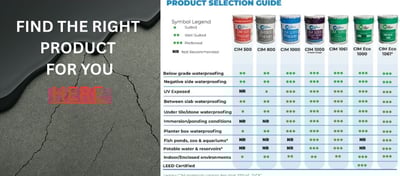

Matching CIM Membranes to Your Project Needs
Application | CIM Product | Benefits & Certifications |
Chemical and wastewater tanks | CIM 1000 | Strong, chemical-resistant urethane coating |
Potable Water Tanks & Reservoirs | CIM 1061 | ANSI/NSF Standard 61 certified; specifically formulated and tested for safe contact with potable water |
Potable Water Application & Vertical walls and ceilings | CIM 1000 TG | Trowel-grade, sag-resistant for overhead and vertical applications, potable water |
Confined or indoor spaces | CIM Eco 1000 | Zero-VOC, low-odor formulation retaining strength of CIM 1000, ideal for occupied or confined areas |
Exposed decks and roofs | CIM 800 or CIM 1000 | UV/weather-resistant urethane for exposed surfaces; high durability outdoors. Warranty limits for 800. |
Fast curing, quick return time jobs | CIM 500 | High-strength, low permeability, especially for horizontal surfaces with tight schedules |
Priming:
Use EMT Primer on steel, concrete, or other challenging substrates to ensure proper adhesion and a moisture-tolerant base.
Want detailed substrate-specific guidance for applying waterproofing membranes?
Download CIM’s complete Waterproofing Application Guide for Commercial and Industrial Projects
FAQ'S
Q: How long do CIM liquid-applied membranes last?
A: When correctly installed and maintained, CIM membranes offer 20+ years of reliable waterproofing and chemical
resistance.
Q: Which CIM coatings are certified safe for potable water tanks?
A: CIM 1061 and CIM 1000 TG are both potable water approved. Additionally, our EMT Primer and CIM VOC Compliant Bonding Agent is also approved.
Q: What preparation is critical before membrane application?
A: The substrate must be clean, dry, sound, and properly primed with EMT Primer, especially on metals or
concrete surfaces, to ensure strong adhesion and coating performance.
Success Story Highlight
At a major Belgian brewery, CIM 1000 was applied in a single coat on a steel leachate tank, enabling a return to service in 48 hours and providing seamless, long-term leak protection.
Installation Best Practices
- Abrasive blast or pressure wash to remove old coatings, dirt, and contaminants.
- Achieve ICRI CSP 4-6 profile on Concrete Applications.
- Prime with EMT Primer for optimal adhesion.
- Apply recommended wet mil thickness. Minimum recommended thickness is 60 mils with applications as high as 120 mils.
- Verify installation with ASTM D903 peel adhesion and ASTM D5385 flood tests.
