Trace-Safe® 101: Tracer Wire Answers for Contractors & Specifiers
Why Tracer Wire Matters
When utilities go underground, everything hinges on locating them later — safely and accurately. Tracer wire is the simple component that makes that possible. This guide covers the most common questions contractors and specifiers ask about tracer wire selection, connectors, locating practices, and terminations — with Trace-Safe® examples you can take to the field.
FAQs with Quick Answers
Q1. What is tracer wire used for?
A. Tracer wire (locate wire) is a buried, locatable conductor installed with non-metallic utilities (gas, water, sewer, fiber, conduit) so crews can apply a signal and accurately locate the line later for safety, repairs, or mapping.
Q2. Copper vs. copper-clad steel (CCS): how do I choose?
A. Solid copper offers maximum conductivity; CCS adds tensile strength and theft deterrence while still presenting a copper surface for signal coupling. Follow the owner’s spec.
Q3. Which insulation is best for direct-bury tracer wire?
A. HDPE/HMWPE jackets resist soil chemistry and abrasion. Match insulation type and thickness to burial depth and environmental conditions in the project spec.
Q4. How do I prevent splice failures?
A. Use direct-bury, waterproof connectors; keep joints clean and mechanically secure; fully seal against moisture ingress. Also, choose a tracer wire system where the connector and tracer wire are designed for one another. Factory support and termination training is also vital.
Q5. What frequency should I start with when locating?
A. Start with the lowest frequency that gives a stable signal; move higher only to bridge gaps or poor bonds, then confirm against known reference points. Also, the higher the frequency the greater the attenuation over longer wire distances.Conductor Types: Solid Copper vs CCS
Solid copper offers maximum conductivity, making it easy to locate even over long distances. Copper-clad steel (CCS) sacrifices a little conductivity but adds tensile strength and theft deterrence while maintaining a copper surface for signal coupling. Which you choose depends on utility owner preference, tensile requirements, and budget. Again, it’s also vital that the proper connector be used to terminate the tracer wire.
Insulation Type & Thickness
Insulation is your first line of defense against soil chemistry and abrasion. For direct-bury service, HDPE/HMWPE jackets are widely specified because they stand up to mechanical stress and resist degradation. Always match insulation type and wall thickness to the burial depth and environmental conditions specified in the project. Typical insulation thicknesses include 30 mils, and 45 mils.
Gauge Selection
Most project specs call for 14–12 AWG tracer wire for general locating. Heavier gauges may be required for long runs or challenging soil conditions. Confirm both the owner’s standards and the locating equipment in use.

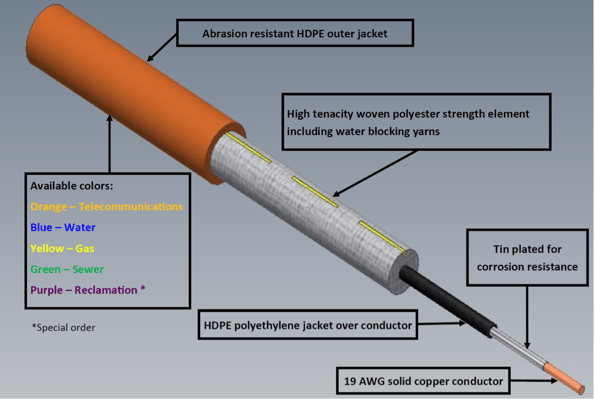

Trace-Safe® uses a 19 AWG center conductor to deliver a more accurate locating signal and higher flexibility in the field. Larger AWG sizes require a greater minimum bend radius, so tight bends aren’t recommended for 14–12 AWG or heavier. The 19 AWG tracer wire allows for a bend radius as small as 0.240”, making it a versatile choice for complex installations.
Detectable Pull Tape vs Dedicated Tracer Wire
- Detectable MULETAPE® (DT Series): Pull tape with a woven-in tracer wire that can be located after installation. Useful only where specs explicitly allow detectable tape to fulfill locating requirements.
- Dedicated tracer wire (Trace-Safe®): The standard practice for most utilities and codes. A continuous conductor with waterproof splices, labeled terminations, and continuity testing provides long-term reliability and compliance.
- Best practice: When in doubt, install Trace-Safe® tracer wire alongside your pull tape. Treat detectable tape as supplemental, not a replacement.
Related reading: Need safer, low-elongation pulls before you bury the line? Read Muletape® RP Series: Safer Pulls, Faster Installs → [link].
Connectors & Waterproofing
Poor splices are the #1 cause of locating failures. Always use direct-bury, waterproof connectors rated for the environment, such as gel-filled or heat-shrink options. Keep joints clean, mechanically secure, and fully sealed. Ask your Trace-Safe® representative for factory-approved connector options and best practices in termination.
Termination Best Practices
Terminate tracer wire at accessible posts or boxes with clear labeling. Bond connections where required, and provide a clean point for transmitter leads. Avoid sharp bends and protect exposed wire from UV or mechanical damage.
Locating Frequencies
Most locators operate across a range of frequencies, from low (~512 Hz) to higher (8–33 kHz). Lower frequencies travel farther on continuous conductors, while higher frequencies can bridge poor bonds or gaps but risk bleeding onto other lines. Start with the lowest frequency that provides a stable signal and step up only as needed. Continuous Runs vs Splicing
Continuous Runs vs Splicing
Continuous runs are always best. If splicing is unavoidable, limit and document splice points. Use sealed connectors and maintain a map or record of splice locations for future maintenance. Utilize the Trace-Safe® tracer wire factory recommended connectors and installation instructions.
Crossings & Joint-Use Corridors
In congested corridors, confusion is common. Label and separate terminations clearly, and document both vertical and horizontal separations at crossings. Provide notes at access points for future locators. Utilizing Trace-Safe® isolation switches is a proven solution to isolate multiple tracer wires converging in a central location such as a hand hole.
Training & Field Resources
Consistency matters. Standardize a pre-bury checklist (wire gauge, connectors, continuity test) and a post-installation test (ohms check, signal test). Keep a photo record of splice points and terminations in the project file.
Where Trace-Safe® Fits
Trace-Safe® provides tracer wire and accessories — wire, connectors, termination hardware — designed for direct-bury reliability and long-term clarity. Paired with strong installation practices, it helps utilities safeguard networks and speed future maintenance.
Quick Answers Recap
Next Steps
A small investment in tracer wire installation best practices saves hours later. Specify the right conductor and insulation, seal every splice, and make terminations obvious and accessible. Trace-Safe® ties these practices together so crews can locate faster and repair with confidence.
