Next-Generation Conformal Coatings: Solving the Biggest Challenges in Modern PCB Protection

Posted by HumiSeal Editor on Mar 11, 2025 3:05:08 PM
HumiSeal Editor

HumiSeal Next-Generation Conformal Coatings- Solving the Biggest Challenges in Modern PCB Protection

In the rapidly evolving electronics landscape, ensuring the reliability and longevity of printed circuit boards (PCBs) is paramount. Conformal coatings have long served as a protective shield against environmental factors such as moisture, corrosion, and thermal stress. However, as technology advances, traditional conformal coatings face new challenges, particularly with modern PCB designs.

The Evolution of PCB Design and Its Implications

Over the past three decades, PCB assemblies have undergone significant transformations. The shift from through-hole technology with wide conductor spacing to surface-mount components has led to denser and more compact designs. Modern PCBs now feature intricate, sharp-edged components packed closely together, a stark contrast to the simpler designs of the past. This evolution, while enhancing functionality, has introduced complexities in ensuring uniform conformal coating coverage. The reduced spacing and sharp geometries present challenges in achieving consistent protection, as traditional coatings may not adequately cover these intricate features, leaving them vulnerable to environmental stressors.

Challenges in Conformal Coating Applications

The primary issues in modern conformal coating applications include:

  1. Inconsistent Coverage on Sharp Edges: Traditional coatings often struggle to adhere uniformly to sharp edges and vertical surfaces. This inconsistency can result in areas with insufficient protection, making components susceptible to corrosion and electrical failures.
  2. Formation of Bubbles: The intricate designs and reduced spacing in modern PCBs can trap air during the coating process, leading to bubble formation. These bubbles compromise the protective barrier, exposing components to potential damage.
  3. Thermal Stress Cracking: Exposure to varying thermal conditions can cause coatings to crack, especially if they are applied too thickly or thinly. Such cracks negate the protective purpose of the coating, allowing environmental factors to affect the PCB adversely.

Thermal Stress Cracking





So, what is Sharp Edge Coverage?

Addressing these challenges requires advancements in coating materials and application techniques. One notable development is the introduction of Sharp Edge Coverage (SEC) conformal coatings. These coatings are specifically formulated to enhance adhesion on sharp edges and complex geometries, ensuring a more uniform protective layer. By optimizing viscosity and flow characteristics, SEC coatings minimize issues related to uneven coverage and bubble formation.

Selective Spray Leakage

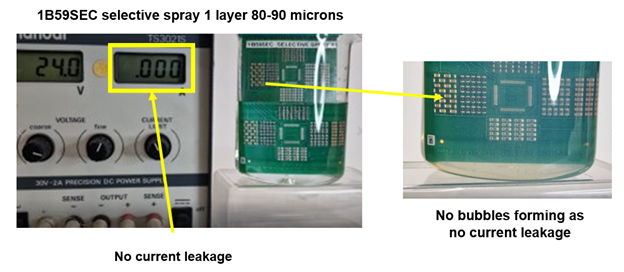

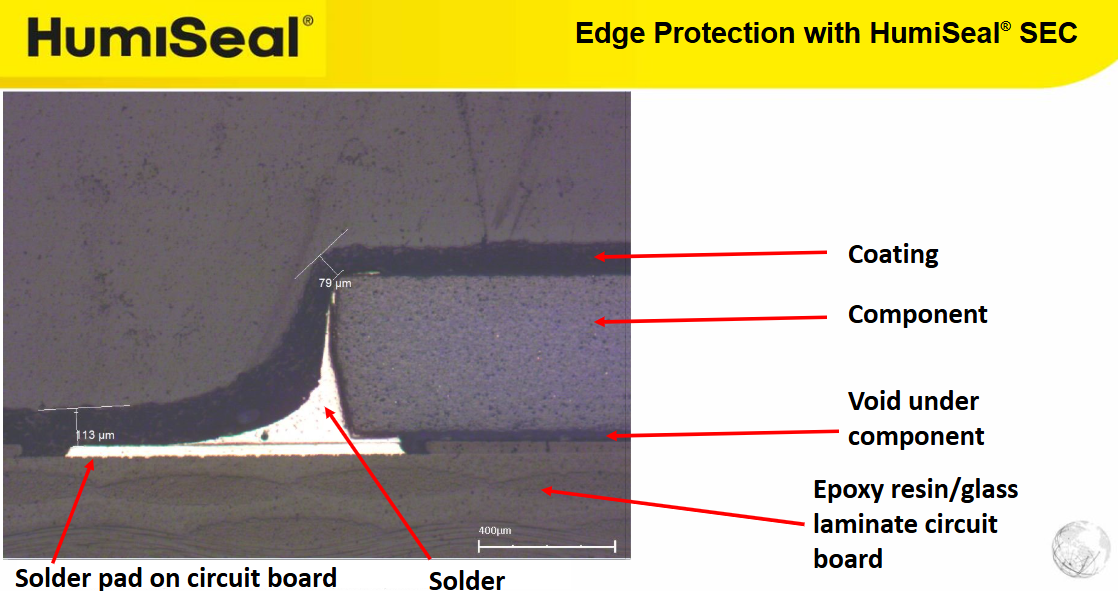

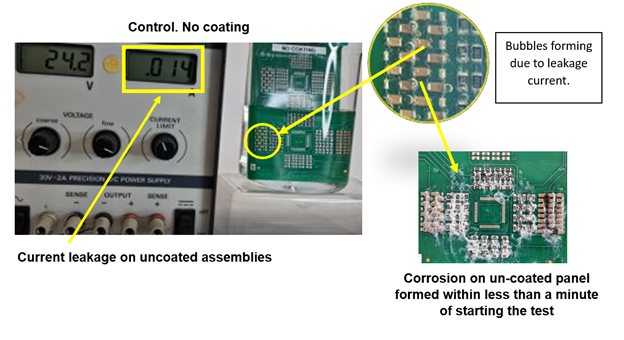

Images demonstrate how the protection of edges and horizontal/vertical transition points (SEC) is a growing source of PCBA and device failure.



Best Practices for Modern Conformal Coating Application

To optimize the performance and reliability of conformal coatings in contemporary PCB designs, including with SEC, consider the following practices:

  • Surface Preparation: Thoroughly clean PCBs to remove contaminants that could impede coating adhesion.  Contaminants such as flux residues can hinder coating adhesion, leading to defects like dewetting or delamination. Ensuring a pristine surface allows the coating to form a consistent and reliable protective layer. Cleaning is a crucial step to success!
  • Material Selection: Choose coatings designed for modern applications, such as SEC formulations, which offer improved coverage on complex geometries.
  • Application Techniques: Utilize advanced application methods that ensure even distribution of the coating, especially on sharp edges and densely packed components.
  • Controlled Curing Processes: Implement precise curing protocols to prevent defects like cracking, ensuring the coating maintains its protective properties under thermal stress.

By integrating these practices and leveraging innovative coating solutions, manufacturers can enhance the durability and performance of PCBs, meeting the rigorous demands of today's electronic applications.
